Frequency Response / Acoustic Data:
Frequency Response: 52Hz-25kHz (±3 dB)
Active Speaker Cabinet Dimensions:
260mm (H) X 155mm (W) X 183.22mm (D)
10.24" (H) X 6.10" (W) X 7.21" (D)
Passive Speaker Cabinet Dimensions:
260mm (H) X 155mm (W) X 160.4mm (D)
10.24" (H) X 6.10" (W) X 7" (D)
Weight:
Active Speaker Weight Unboxed: 4.33kg / 9.55lbs
Passive Speaker Weight Unboxed: 3.96kg / 8.73lbs
Packaged Weight System Pack: 9.27kg / 20.44lbs

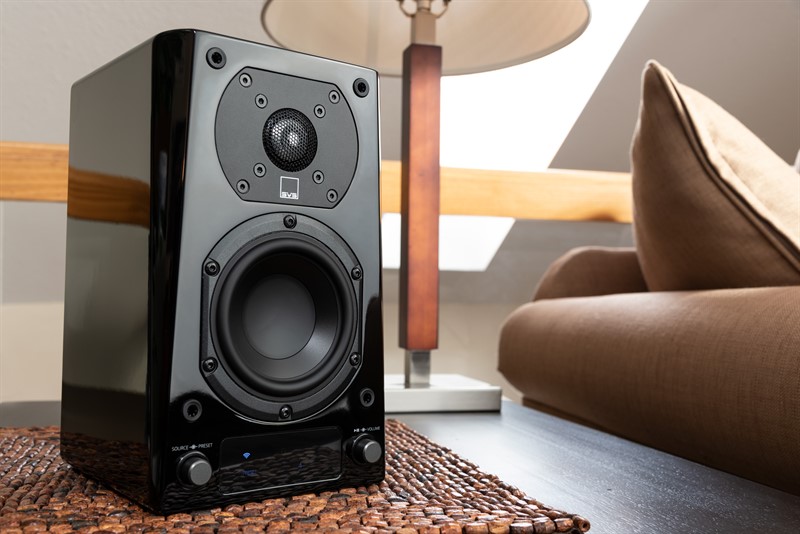

Driver Specs:
1" Aluminum Dome Tweeter:
FEA-optimized diffuser for airy and unveiled presentation
Aluminum dome for exceptional transient response
4.5" Midrange Driver:
Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
Vented voice coil former minimizes air compression artifacts
Amplifier Specs:
Dual Class-D Power Amps for Discrete Driver Bi-amplification
200 watt (50 watt x 4) RMS Power
Digital controlled tweeter-to-woofer crossover: 2kHz (12dB/octave slope)
Speaker Cabinet Specs:
Finish Options: Piano Gloss Black and Piano Gloss White
2.36" wide-flared rear-firing port
Protective cloth grille with pin/cup retention system
Elastomer stick-on bumper feet (adds 3mm to height)
Input/Output Specs:
Left/Right RCA Input Impedance: 20K
3.5mm Aux Input Impedance: 20K
Optical Input: S/PDIF receiver works at a wide range of sampling frequencies between 18 kHz and 96 kHz
Subwoofer Output: 2V Auto Detecting Low Pass Filter: An active Low Pass Filter at 80Hz is engaged when subwoofer detected
Cabinet Specs:
Acoustically transparent and FEA optimized grilles minimize diffraction
FEA-optimized cabinet and bracing eliminates resonances
Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response
General Specifications:
Switch Mode Power Supply: Auto Switching 100 - 120V / 220 - 240V, 50/60Hz
Fuse: 15A/250V
Standard Detachable Power Cord
Standard Active-Passive Speaker Connection Cord: 3m / 10ft
