Dimensions
Cabinet Dimensions:
76.20mm (H) X 231.07mm (W) X 197.80mm (D)
3" (H) X 9.10" (W) X 7.88" (D)
Overall Dimensions: (includes feet, knobs, rear in/out jacks, speaker terminals):
82mm (H) X 231.07mm (W) X 223.80mm (D)
3.23" (H) X 9.10" (W) X 8.81" (D)
Packaged Dimensions:
171mm (H) X 311mm (W) X 311mm (D)
6.73" (H) X 12.24" (W) X 12.24" (D)
Weight Unboxed:
2.22kg / 4.89lbs
Acoustic Specs:
Rated Bandwidth: 10Hz-20kHz (±1 dB)
SN Ratio: 90dB @1V input, 2 x 150W output
Power Amp: 300 watts RMS (150 watts x 2 into 4ohm)

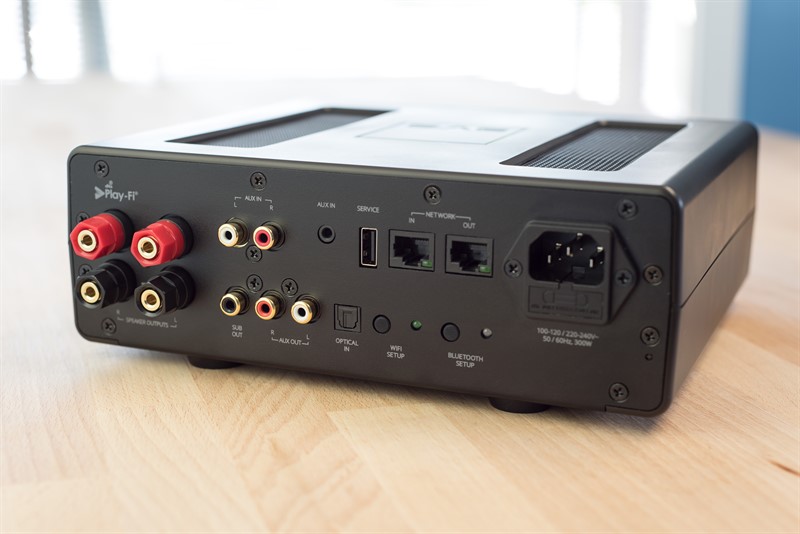

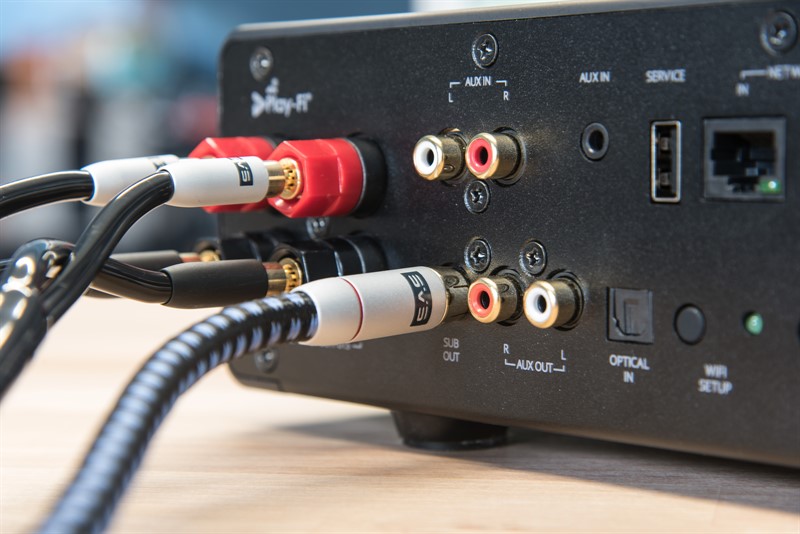

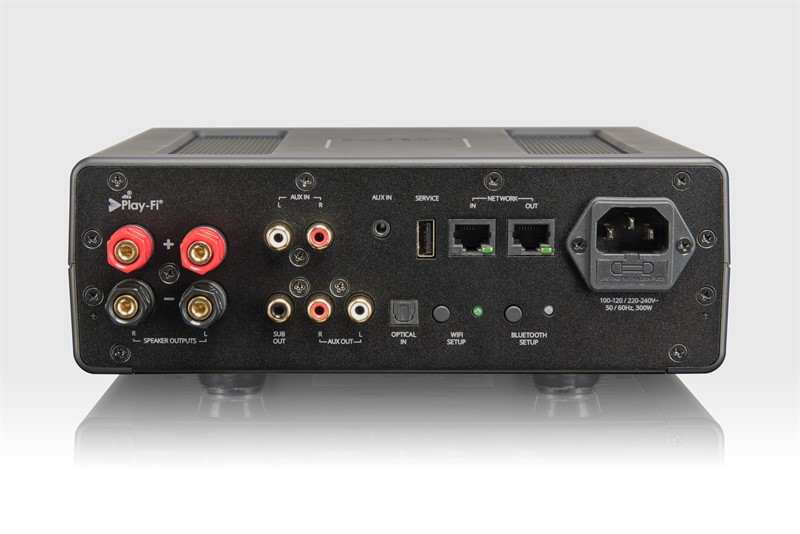

Input/Output Specs:
Left/Right RCA Input: Input Impedance: 20K
3.5mm Aux Input: Input Impedance: 20K
Toslink Optical Input: Input Impedance: 75?
Subwoofer output: 2V MAX
Left/Right RCA Output: 2V MAX
Front 3.5mm headphone output: 1V@32?max
General Specs:
Switch Mode Power Supply: Auto Switching 100 - 120V / 220 - 240V, 50/60Hz
Fuse - 6.3A/250V
Detachable power cord
