Subwoofer Specs:
Premium black ash and piano black finish options
Protective non-resonant steel mesh grille

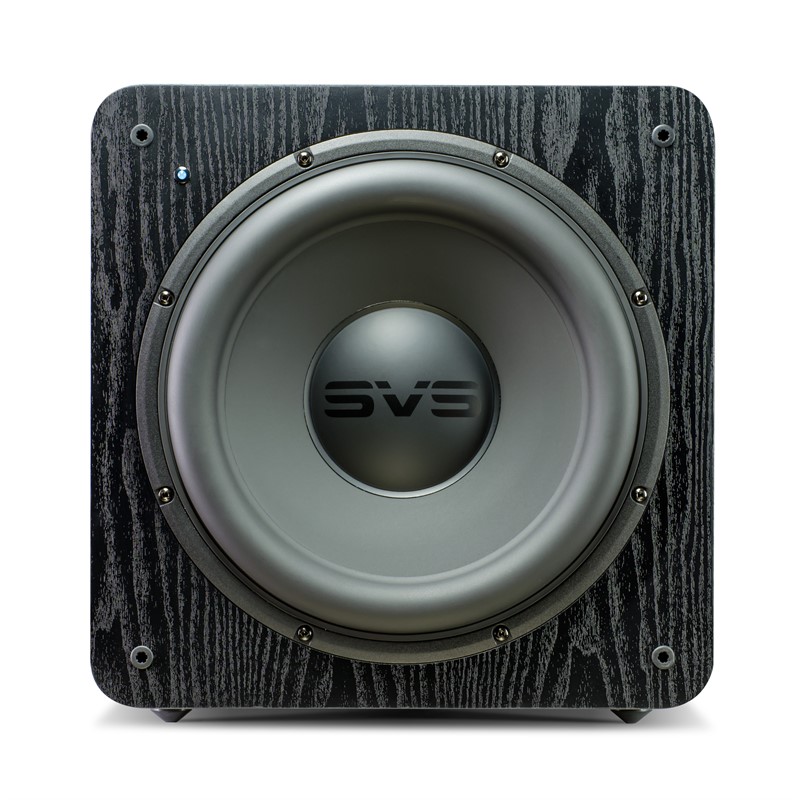

Front-firing 12" driver
Rear-mounted amplifier
Screw-in rubber feet
Robust Medium Density Fiberboard(MDF) cabinet construction
Cabinet Dimensions: 14.6" 37.1 CM (H) x 14.2" 36.1 CM (W) x 15.4" 39.1 CM (D) (without grille)
Overall Dimensions: 14.6" 37.1 (H) x 14.2" 36.1 CM (W) x 17.1" 43.4 CM (D) (with grille)
Weight (unboxed): 16KG
Shipped Dimensions: 21" (H) x 20.2" (W) x 23.2" (D)
Shipped Weight: 51 pounds
Driver Specs:
SVS 12" 2000-series driver
Powder-coated cast aluminum basket
Dual high-grade ferrite magnets
Finite Element Analysis (FEA)-optimized motor structure
Dual shorting rings reduce gap induction and lower distortion
Extended pole piece improves heat sink and thermal management properties
2" diameter, high-power voice coil
Upgraded Nomex spider for improved linearity and driver control at extreme drive levels
High-quality insulated tinsel leads with 3-point-contact precision alignment
Lightweight aluminum cone with polypropylene dust cap provides excellent rigidity and pistonic behavior
Low-creep rubber long-throw surround for excellent durability and longevity

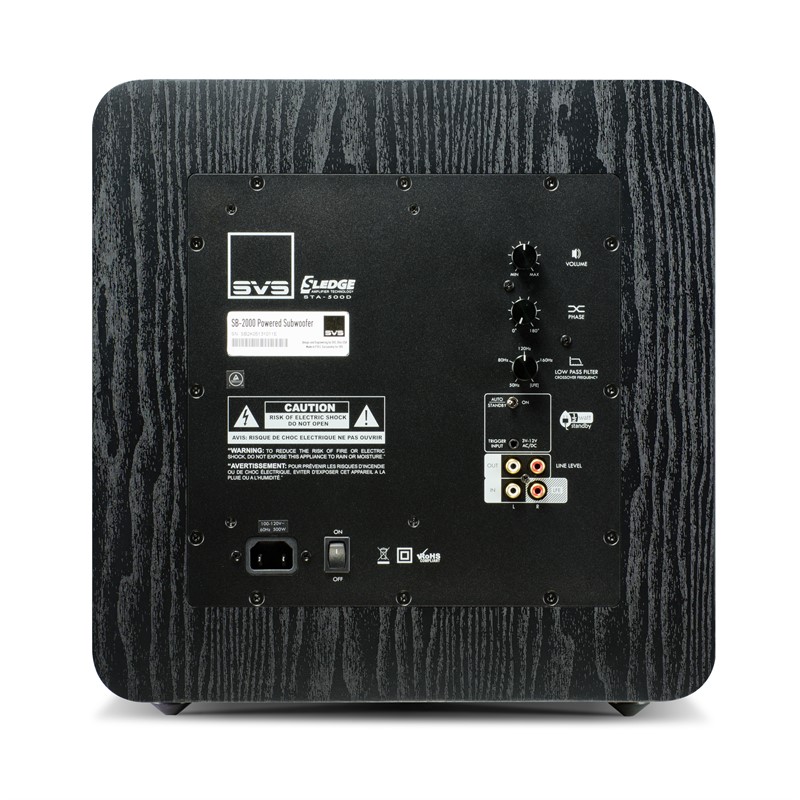

Amplifier Specs:
Sledge STA-500D DSP amplifier
500 watts RMS continuous (1100 watts peak dynamic)
Efficient and cool-running Class D topology
DSP control for accurate response and refined behavior under all operating conditions
Main power rocker switch
Auto-On / On toggle switch
3-12V trigger with 1/8" (3.5 mm) TRS mini-jack input
Green standby mode with > 0.5 watts consumption
Stereo line-level RCA Input & Output connections
Input impedance - 47 k? (unbalanced line-level RCA)
Continuously variable volume/gain control
Continuously variable (0-180 degrees) phase control
Continuously variable (50-160 Hz) 12 dB/octave low pass filter frequency with disable/LFE setting
Fixed 80 Hz 12 dB/octave high pass filter on line level outputs
RoHS compliant, lead-free construction and world-wide safety certifications
Detachable power cord
