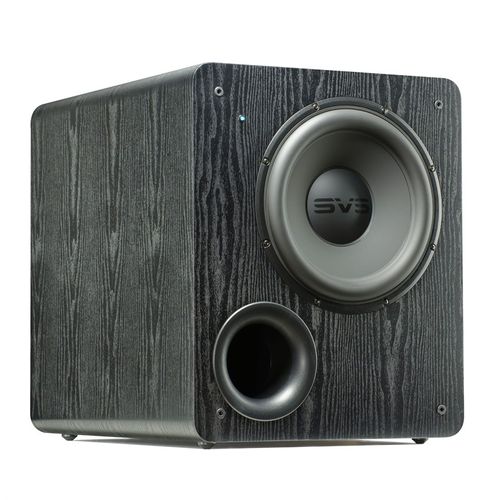

Subwoofer Specs:
Premium black ash finish.

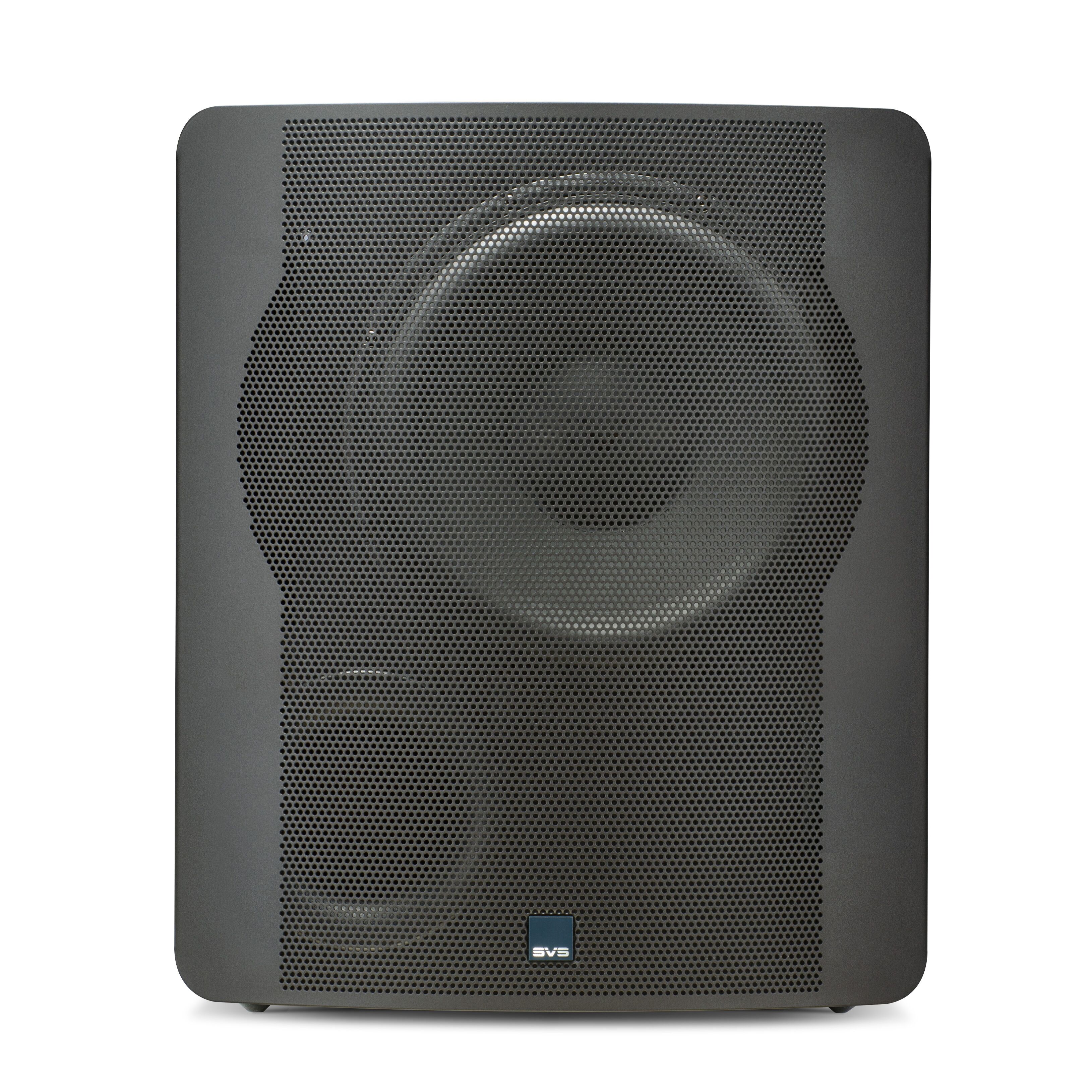

Protective non-resonant steel mesh grille.

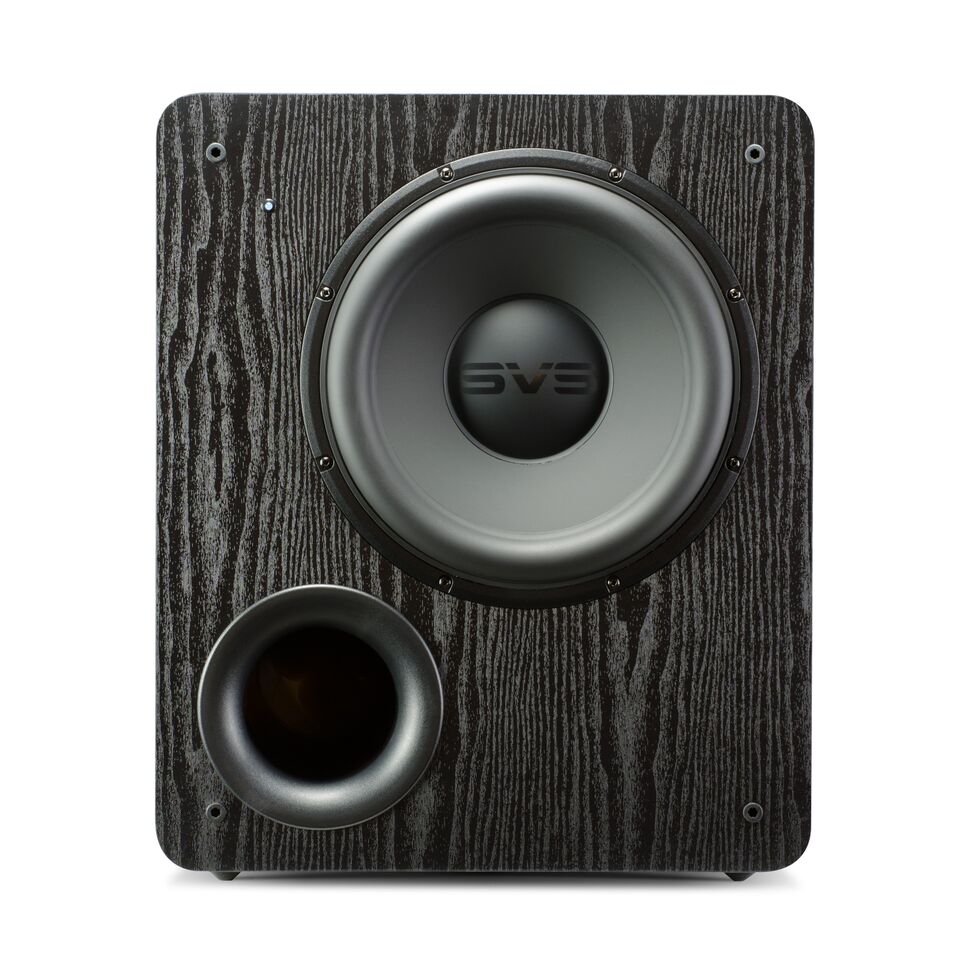

Front-firing 12" driver.

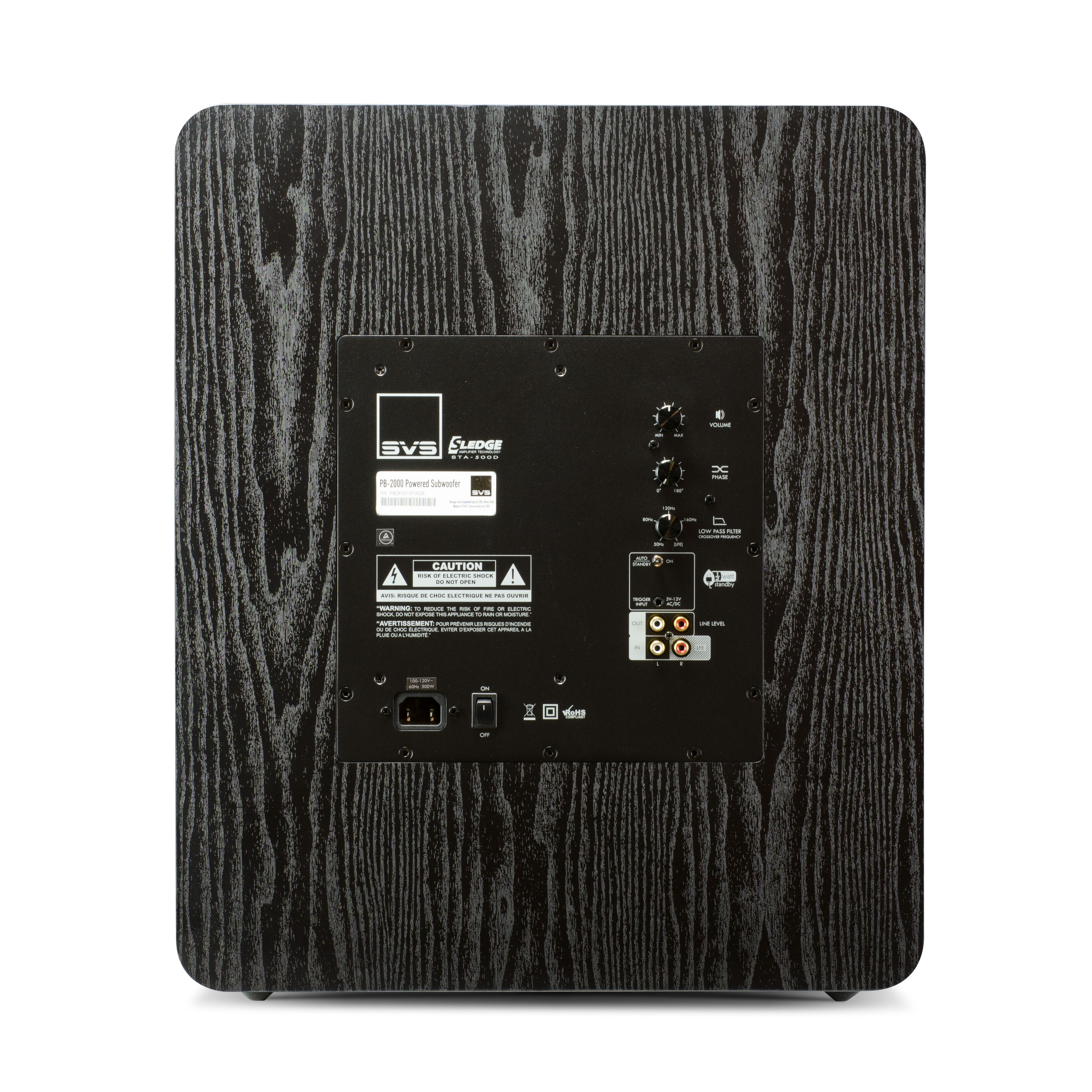

Rear-mounted amplifier.
Screw-in rubber feet.
Robust Medium Density Fiberboard(MDF) cabinet construction.
Cabinet Dimensions: 20.9" 53.1 CM (H) x 17.3" 44 CM (W) x 23.2" 59 CM (D) (without grille).
Overall Dimensions: 20.9" (H) x 17.3" 44 CM (W) x 25.4" 64.5 CM (D) (with grille).
Weight (unboxed): 30KG.
Shipped Dimensions: 30" (H) x 23" (W) x 27" (D).
Shipped Weight: 82 pounds.
Driver Specs:
SVS 12" 2000-series driver.
Powder-coated cast aluminum basket.
Dual high-grade ferrite magnets.
Finite Element Analysis (FEA)-optimized motor structure.
Dual shorting rings reduce gap induction and lower distortion.
Extended pole piece improves heat sink and thermal management properties.
2" diameter, high-power voice coil.
Upgraded Nomex spider for improved linearity and driver control at extreme drive levels.
High-quality insulated tinsel leads with 3-point-contact precision alignment.
Lightweight aluminum cone with polypropylene dust cap provides excellent rigidity and pistonic behavior.
Low-creep rubber long-throw surround for excellent durability and longevity.
Amplifier Specs:
Sledge STA-500D DSP amplifier.
500 watts RMS continuous (1100 watts peak dynamic).
Efficient and cool-running Class D topology.
DSP control for accurate response and refined behavior under all operating conditions.
Main power rocker switch.
Auto-On / On toggle switch.
3-12V trigger with 1/8" (3.5 mm) TRS mini-jack input.
Green standby mode with > 0.5 watts consumption.
Stereo line-level RCA Input & Output connections.
Input impedance - 47 k? (unbalanced line-level RCA).
Continuously variable volume/gain control.
Continuously variable (0-180 degrees) phase control.
Continuously variable (50-160 Hz) 12 dB/octave low pass filter frequency with disable/LFE setting.
Fixed 80 Hz 12 dB/octave high pass filter on line level outputs.
RoHS compliant, lead-free construction and world-wide safety certifications.
Detachable power cord.
